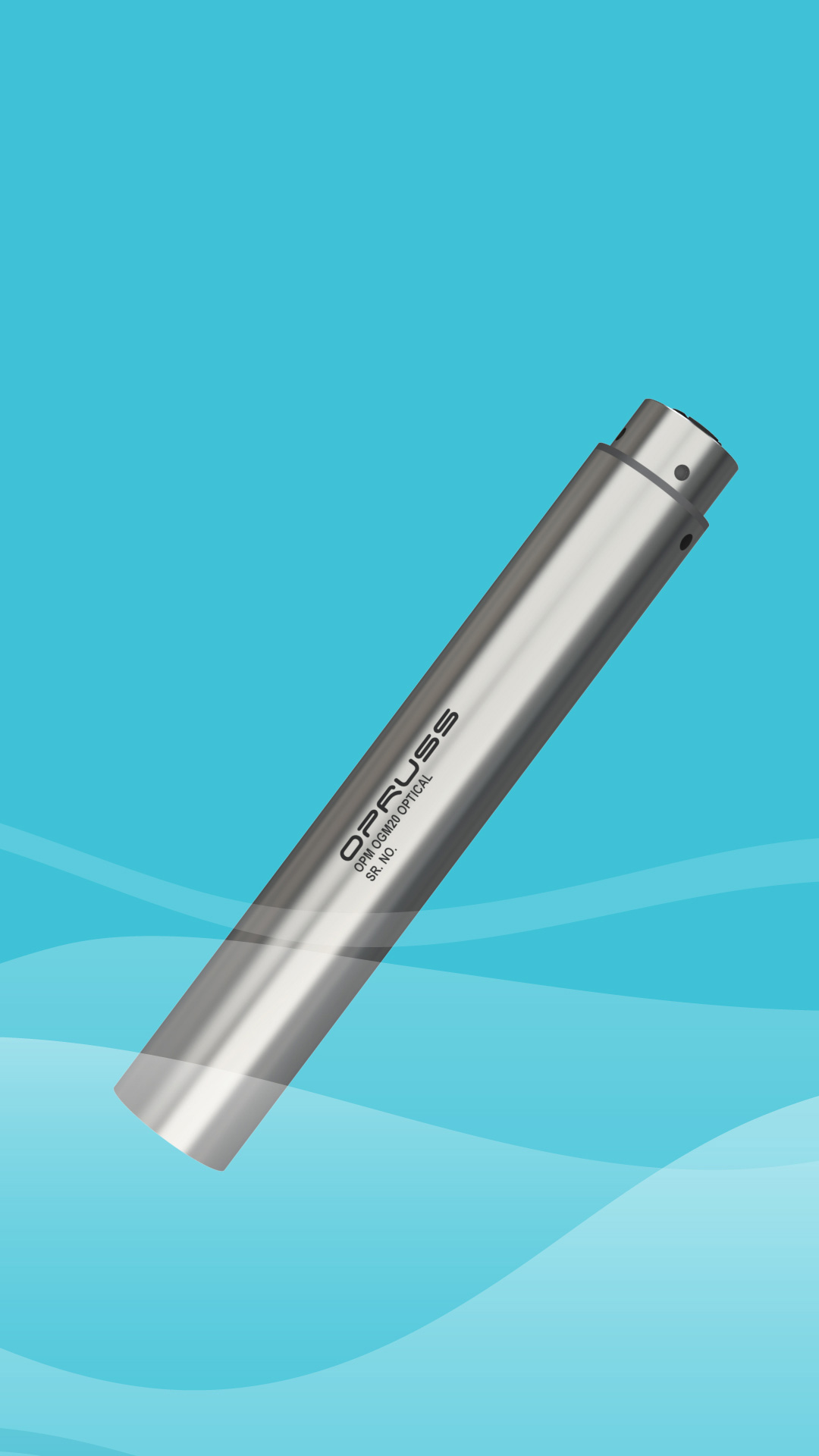

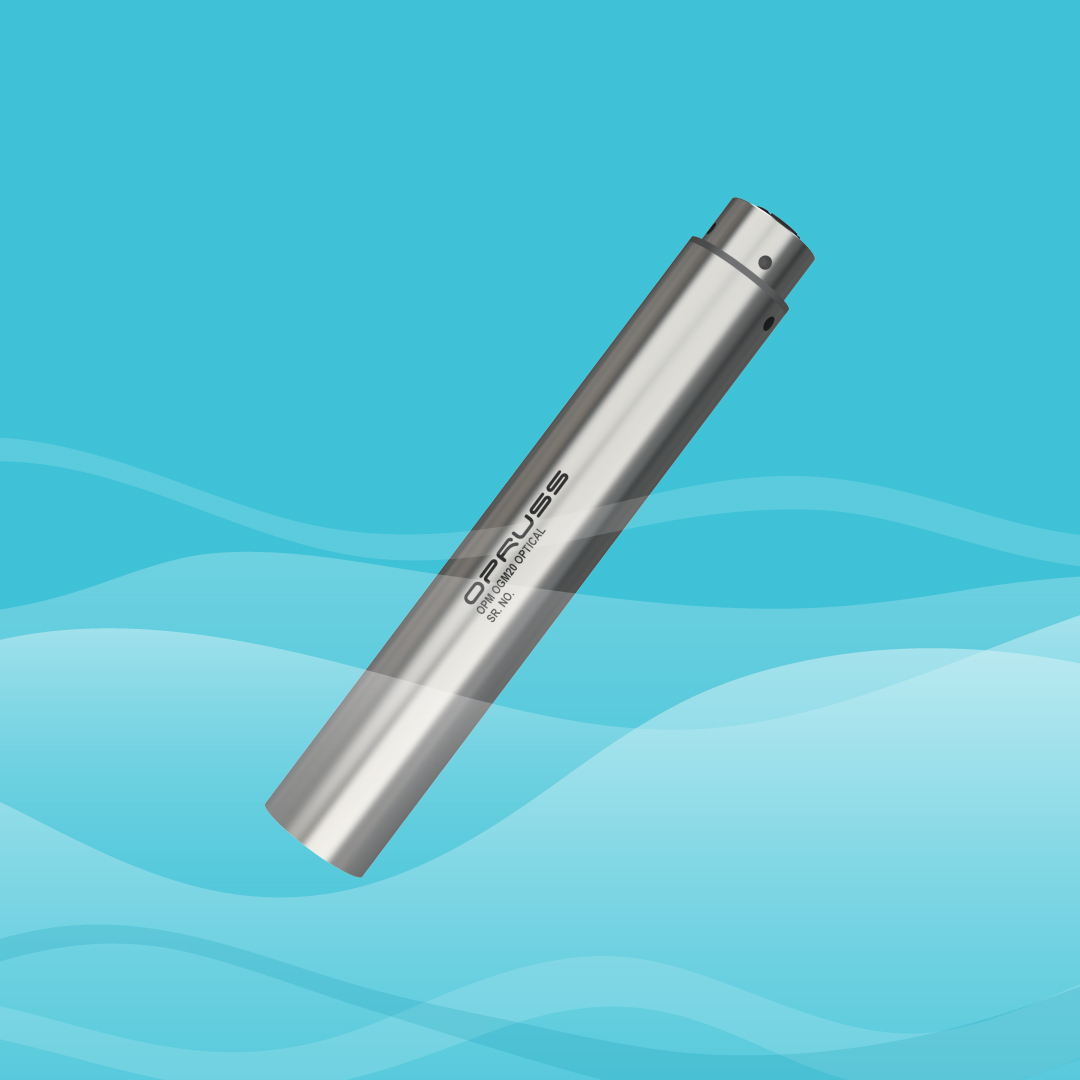

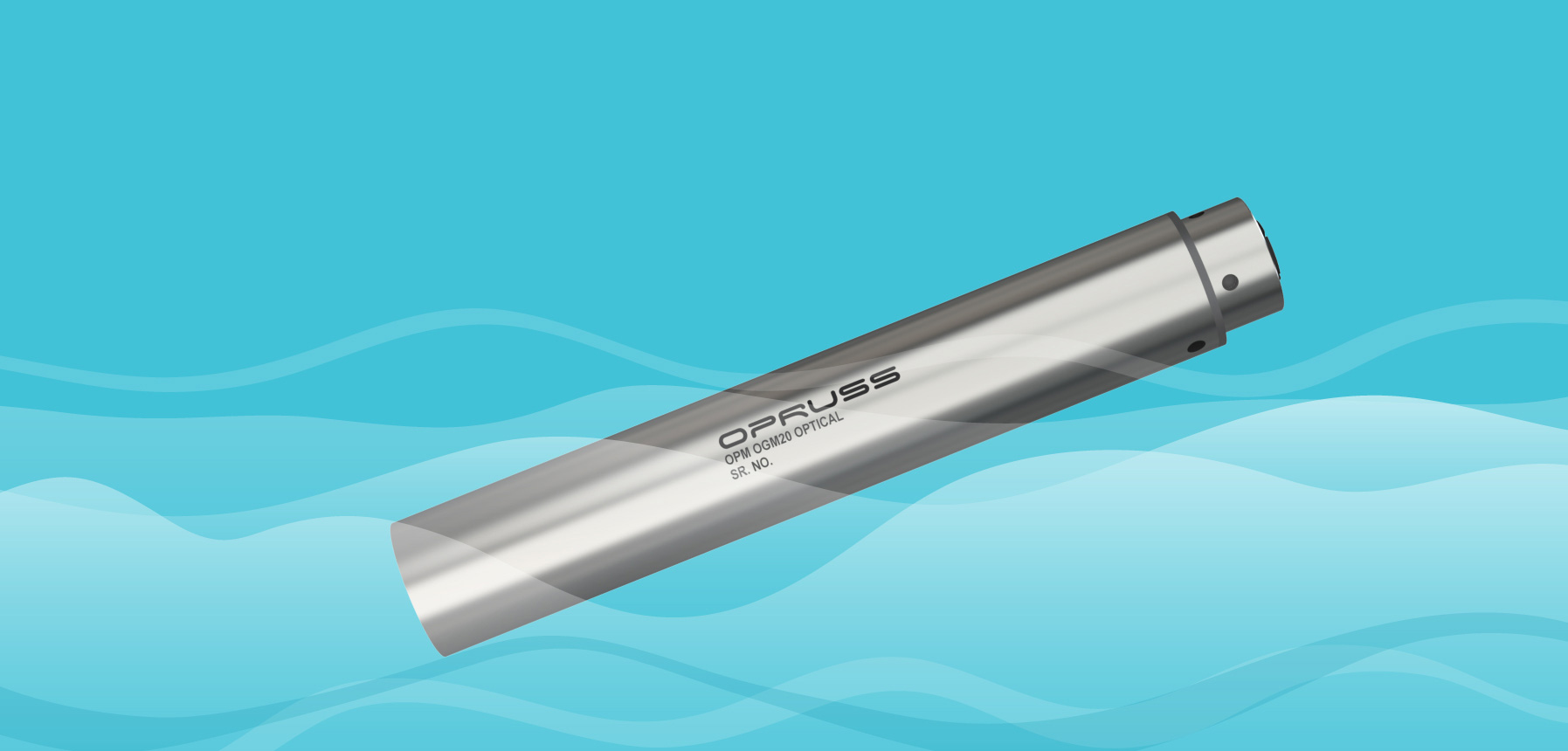

The OIW Analyzer enables real-time detection of oil concentration in water using advanced optical detection. Its specially treated aperture tip allows for continuous and reliable operation without the need for cleaning or calibration that requires human intervention. The sensor can connect to a smart controller, utilizing collected data for various applications. The sensor performs self-diagnostics and compensates for background interference, ensuring highly accurate readings.
Range : | 0.3-20ppm or 0.3-50ppm QSU |
Resolution : | 0.01ppm |
Temperature Range : | 0 ~ 50 °C |
IP rating : | IP68 |
Accuracy : | 0.3ppm Or 3% FS QSU |
Assembly : | Submersible |
Min. Detection limit : | 0.09ppm |
Linearity : | R² > 0.90 |
Power : | DC 12V |
Body materials : | SS316L and POM |
Diameter : | Φ22×170.5mm |
Probe Cable Length : | 5M Extendable |
Protection Level : | IP68 |
- Accurate, real-time measurements with high sensitivity
- Easy to set up –Plug-and-play setup it in and start using.
- Digital display for monitoring and saving data for better analysis.
- Requires very little maintenance.
- Built-in tools for checking sensor performance through two-way communication.
- Reliable performance under changing conditions.
- Easy to calibrate with self-cleaning features to prevent build-up from dirt or slime.
Detects even trace levels of oil or hydrocarbons, allowing for early contamination detection in sensitive water environments and helping to ensure regulatory compliance.
- Surface Water Monitoring Stations
- Wastewater Treatment Plants (WWTPs)
- Industrial Process Water Monitoring
- Environmental Compliance in Oil & Gas Facilities
