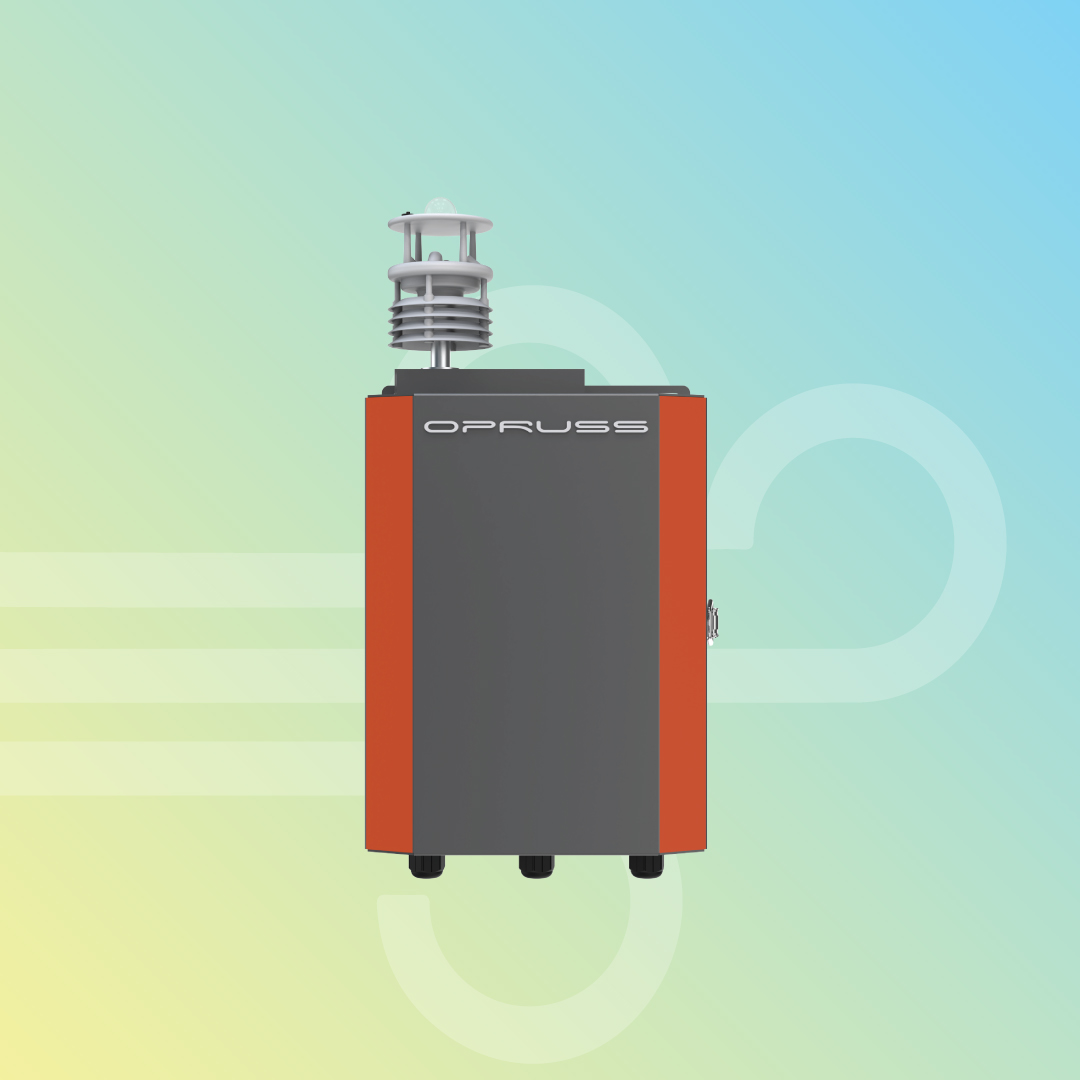

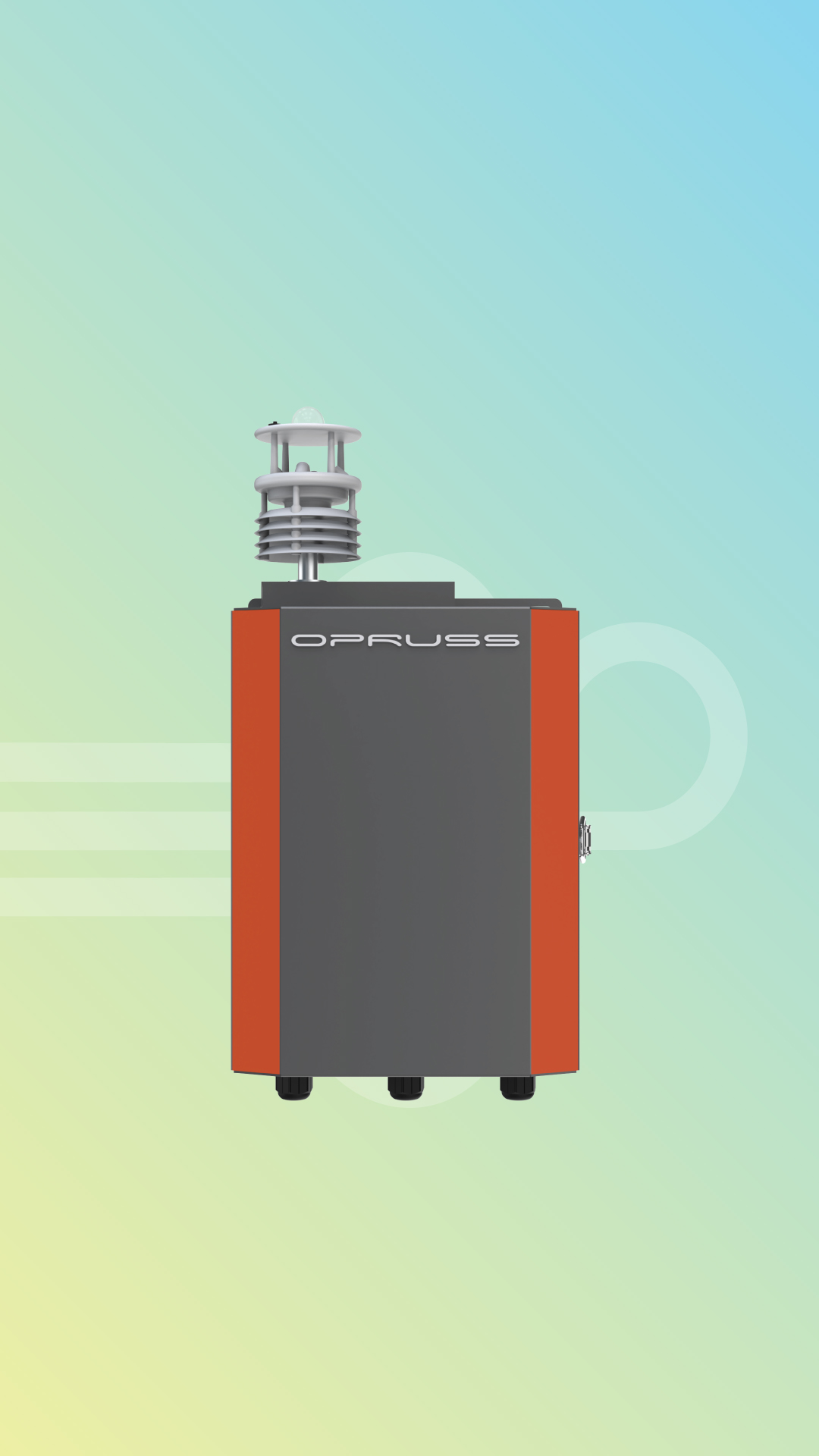

This system measures weather parameters like temperature, humidity, pressure, wind speed, wind direction, rainfall, and light levels. It can continuously monitor these outdoor weather parameters for 24X7. with a Robust and weatherproof controller and sensors the system gives analytically valid results in realtime
Parameter | Principle | Range | Accuracy | Resolution |
Temperature | Energy gap method | -40-85°C | ±0.3°C (@25°C) | 0.1°C |
Atmospheric humidity | Capacitance method | 0-100%RH | ±3%RH (10-80%RH) When there is no condensation | 0.1%RH |
Atmospheric pressure | Piezoresistive | 500-1100hPa | ≦±0.3hPa(@25°C, 950hPa-1050hPa) | 0.1hpa |
Wind speed | Ultrasonic | 0-60m/s | ±(0.3+0.03v)m/s(≤30M/S) ±(0.3+0.05v)m/s(≥30M/S) V is the standard wind speed | 0.01m/s |
Wind direction | Ultrasonic | 0-359.9° | ±3°(wind speed<10m/s) | 0.1° |
Rainfall | Photology | 0-200mm/h | Error < 5% | 0.2mm |
Solar radiation | 0-2000W/m2 | 5% | 1W |
- Standard configuration monitoring Temperature (T), Relative Humidity (RH), Pressure (P), Wind Speed (WS), Wind Direction (WDIR), Rainfall, and Illuminance
- RS485 (MODBUS)communication
- High precision and reliable performance, suitable for harsh outdoor weather harsh- (Remove) environment
- Parameter collection with optional wireless data collector, automatic data upload network platform,
- Mobile phone client real-time data view
- Real-time meteorological data monitoring, low cost and suitable for grid distribution
- Small size, modular design, flexible layout
- Data acquisition uses a 32-bit high-speed processing chip with stable and anti-interference performance.
- Remote diagnostic feature with connectivity options including 4G SIM card, Wi-Fi, and Ethernet
- Enables real-time measurements and corrective actions based on live data
- Urban environmental monitoring
- Wind power generation
- Weather monitoring
- Bridges
- Tunnels
- Ships
- Airports
- Agricultural weather
- Water management
- Power management
- Highway weather monitoring
- It does not need maintenance or on-site calibration.
